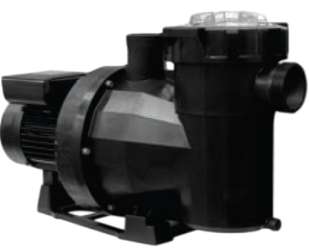

ปั๊มน้ำ ASTRAL รุ่น Victoria Plus Silent Pump

ั๊มน้ำ ASTRAL รุ่น Victoria Plus Silent Pump


ปั๊มสูบน้ำในตัวพร้อมมอเตอร์ติดตั้งอยู่บนตัวปั๊ม เพื่อป้องกันไม่ให้ สิ่งแปลกปลอมเข้าไป ซึ่งอาจทำให้ชิ้นส่วนไฮครอลิกเสียหายได้ มอเตอร์ที่ให้มามีมาตรฐาน IP-55 ทนต่อสภาพแวดล้อมที่ร้อมที่ร้อน และความชื้นในระดับสูง
ลักษณะสำคัญของ Victoria Plus Silent คือ:
ㆍ ระดับเสียงรบกวนต่ำ: ระหว่าง 61 dB ถึง 70 dB
ㆍใช้งานง่าย:รวมฝาครอบตัวกรองขั้นต้นต้นพร้อมโยก 2 อัน
ㆍลูกปืนหน้ามีขนาดที่ใหญ่ขึ้น

ratingratingratingratingrating

ดาวน์โหลดสเปคสินค้า

รายละเอียดสินค้า

ปั๊มน้ำ ASTRAL รุ่น Victoria Plus Silent Pump

ออกแบบใหม่ เสียงเงียบกว่าเดิม ขณะเครื่องทำงาน

ปั๊มสูบน้ำในตัวพร้อมมอเตอร์ติดตั้งอยู่บนตัวปั๊ม เพื่อป้องกันไม่ให้สิ่งแปลกปลอมเข้าไป ซึ่งอาจทำให้ชิ้นส่วนไฮครอลิกเสียหายได้ มอเตอร์ที่ให้มามีมาตรฐาน IP-55 ทนต่อสภาพแวดล้อมที่ร้อมที่ร้อนและความชื้นในระดับสูง

ลักษณะสำคัญของ Victoria Plus Silent คือ:

  • ㆍระดับเสียงรบกวนต่ำ: ระหว่าง 61 dB ถึง 70 dB
  • ㆍใช้งานง่าย:รวมฝาครอบตัวกรองขั้นต้นต้นพร้อมโยก 2 อัน
  • ㆍลูกปืนหน้ามีขนาดที่ใหญ่ขึ้น



มีให้เลือก 7 รุ่น ตั้งแต่ขนาด 0.5HP - 3 HP

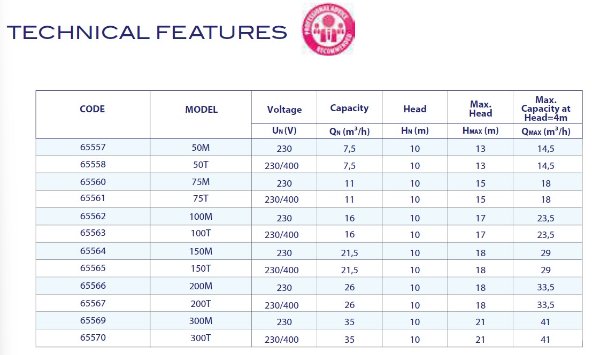

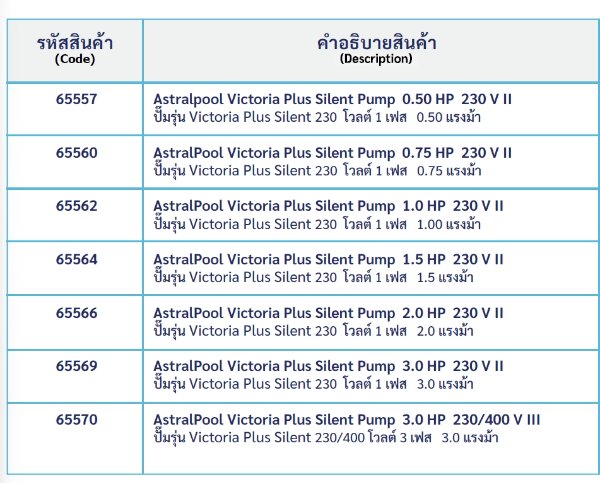

"ASTRAL" Victoria Plus  Silent Pump

AS-65557 -

0.5HP (1/2HP) / 220V / 50Hz / 1PH, ท่อ 1.5" - 7.5m /Hr at head 10m
AS-65560 - 0.75HP (3/4HP) / 220V / 50Hz / 1PH, ท่อ 1.5" - 11m3/Hr at head 10m
AS-65562 - 1HP / 220V / 50Hz / 1PH, ท่อ 2" - 16m3/Hr at head 10m
AS-65564 - 1.5HP / 220V / 50Hz / 1PH, ท่อ 2" - 21m3/Hr at head 10m
AS-65566 - 2HP / 220V / 50Hz / 1PH, ท่อ 2" - 26m3/Hr at head 10m
AS-65569 - 3HP / 220V / 50Hz / 1PH, ท่อ 2" - 35m3/Hr at head 10m
AS-65570 - 3HP / 380V / 50Hz / 3PH, ท่อ 2" - 35m3/Hr at head 10m
หมายเหตุ: แถม 655557R110 1ชุด/ปั๊ม

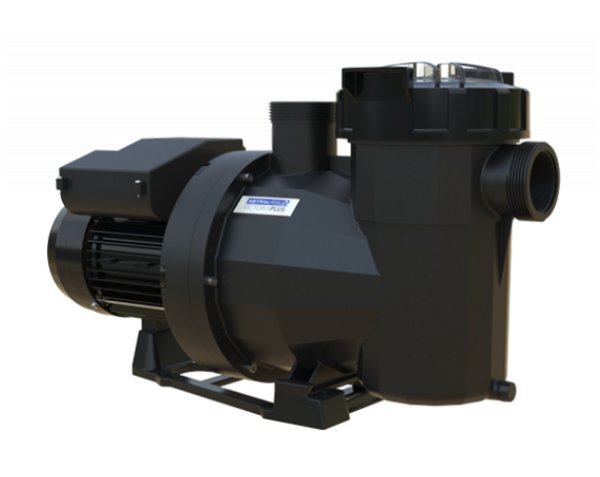

Victoria Plus Silent Pump


Victoria Plus Silent. The new generation of filtration pumps

Selfpriming pump with a range from 1/2 Hp up to 3 Hp, and are provided with both single‐phase motors and three‐phase motors. A pre‐filter has been integrated into the body of the pump. The motors supplied with the motor pump unit have been protected with IP‐ 55 protection and are adapted to external thread Victoria Plus withstand hot atmospheres and high humidity levels. Main features of Victoria Plus Silent are:
• Low noise level: between 61 dBA – 70 dBA.
• Easy to use: Pre-filter cover with 2 suitcases included (no key required).
• Compatibility: 100% compatible with the Victoria Plus pump.
It is important to highlight the oversized and high quality front bearing to improve axial forces of the pump.
